Side Scan Sonar

Shark-S450U Single Frequency Side Scan Sonar

  • Description
  • Features
  • Specifications
  • Application
  • Download

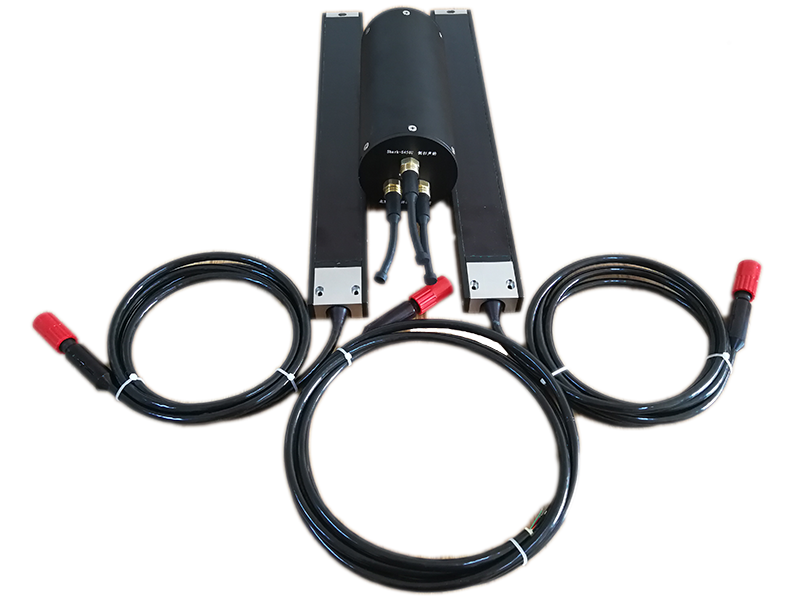

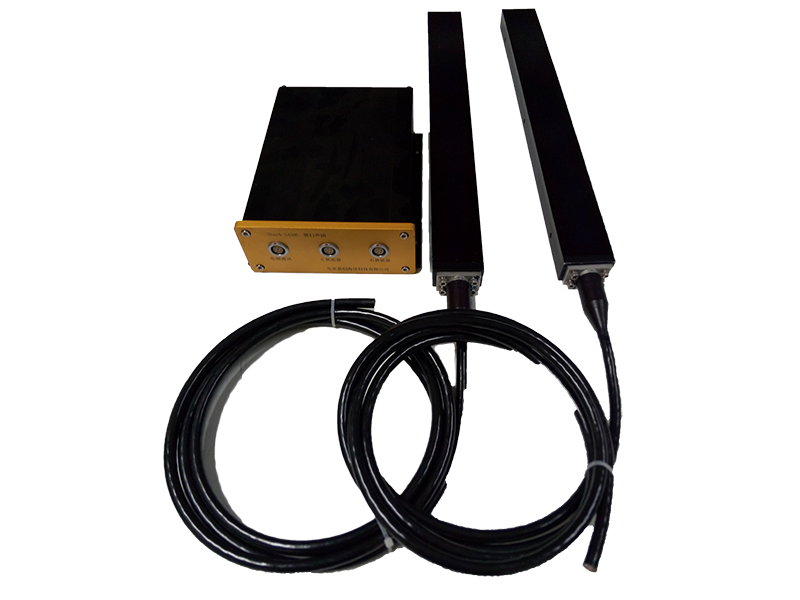

    Shark-S450U is supplied as two separate transducers and an electronic module suitable for integration into most Remotely Operated Vehicles (ROVs), Unmanned Surface Vehicles (USVs), and also electronic components and transducers are housed in one case. Shark-S450U side scan sonar is an extremely compact and cost effective side scan sonar designed for a wide range of seabed survey and inspection duties. The sonar is reliable and durable.

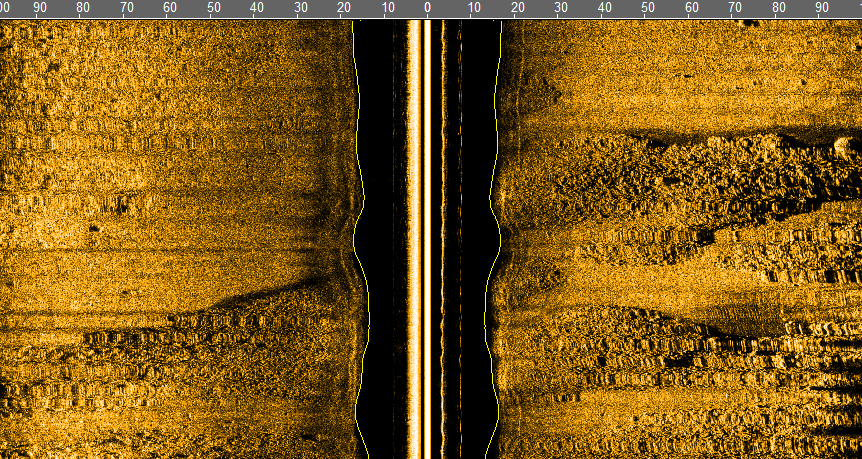

    OTech software is equipped with the function of sonar image display, navigation, data recording and replay, target management and output and sensor information multi-window display. It can output the data with standard XTF format which can be processed with the third party processing software, and also can be customized according to the requirements.

    FEATURES

    • Long Range Coverage and High Resolution Images

    • Small, Lightweight and Easy

    • CHIRP and CW Sonar Transmission Modes

    • Low Power Consumption

    • OTech Acquisition Software, Free Update

    Sonar Specifications

    Shark-S450U

    Frequency

    450kHz

    Pulse Type

    CW & LFM CHIRP

    Maximum Range

    150m

    Beam Width

    Horizontal:0.3 Vertical:45°

    Resolution(h-range)

    Along Track:0.005h;Across Track:1.25cm

    Depression Angle

    15°

    Maximum Depth Rating

    300m (Aluminum) ;1000m (316 Stainless Steel)

    Towfish Size/Weight(integrated)

    637mm*105mm (Length*Diameter)) / 6kg

    Transducer Size/Weight(separated)

    517mm*58mm(Length* Width)/2kg

    Electronics Module (separated)

    200mm*155mm (Length*Width) / 1.7kg (Unsealed) 240mm*105mm (Length*Diameter)) / 2.1kg (Sealed)

    Power Consumption

    24V DC , 15W

    Software OTech

    Windows,NMEA 0183 Navigation Data Input

    OTSS、XTF Output Data Format

    Tow Cable

    Kevlar,Standard Length: 2m(Optional)

    APPLICATIONS

    • Hydrographic Surveys

    • Geophysical Surveys

    • Cable and Pipeline Surveys

    • Wide Area Search and Recovery

    • Pier/Harbor Wall Inspections

    • Archaeological Surveys

    • Wreck Hunting
